How to Make the Dieline of Snap Lock Bottom Box

The snap lock bottom box is also called 1-2-3 bottom box, which has 4 flaps that are folded and locked to form the bottom in 3 steps. You can use this styled packaging box to pack cosmetics, electronics, hardware, etc. It's much strong and durable.

Specifications of the snap lock bottom box

1, material 250gsm CCNB duplex board + single wall E flute corrugated board, white or brown is available. Further, other materials also okay, such as cardboard, paperboard of various weight.

2, print colors in CMYK, Pantone with your logo and design colors. It's better to send the design artwork file in .PDF or .ai format.

3, surface treatment is varnishing to protect the print inks. You can also choose other disposals on the logo position, such as hot stamping, embossing, spot UV, flocking, glittering, etc.

4, sample snap lock bottom box in stock is free of charge, while you only need to pay the express shipping cost. then you can get the sample box to check the quality of print and material. If you want to make the sample box with your own logo and design colors printing, sample charge is US$100~300 according to the size of your box. When the amount of the order over $10,000, it's possible refund the sample cost 100%.

snap lock bottom box

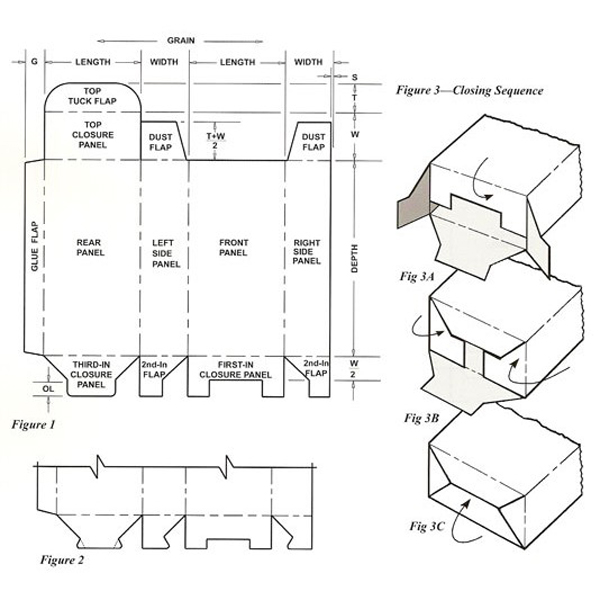

Dieline of the snap lock bottom packaging box

If you are looking for a packaging box with snap lock bottom, however, your designer is not sure how to make the dieline, no worries. Please feel free to contact us. Our service team would like to help draw the template in your box sizes. You only need to tell us the box style, and dimensions.

To fold the snap-lock bottom box, firstly you need fold the largest bottom panel. Then fold the 2 side panels. Finally, fold and press the remaining bottom panel into the box. Now, the box is well assembled. Of course, you can also refer to the video above to guide you of how to fold the snap lock bottom box.

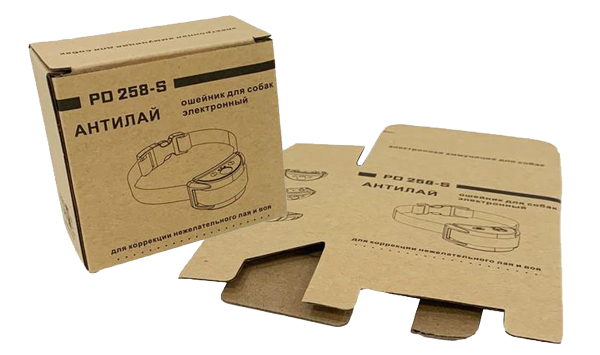

tuck top box with snap lock bottom

Welcome to get in touch with us. Our sales team would reply to you as fast as they can within 12 hours on working days. Of course, in our factory, all boxes can be customized with your logo and design colors. Whatever you are looking for, please feel free to contact us.
